Frozen Coil Repair in Historic Highlands, Pasadena
Coverage - Historic Highlands, Pasadena - updated 2026-06-13

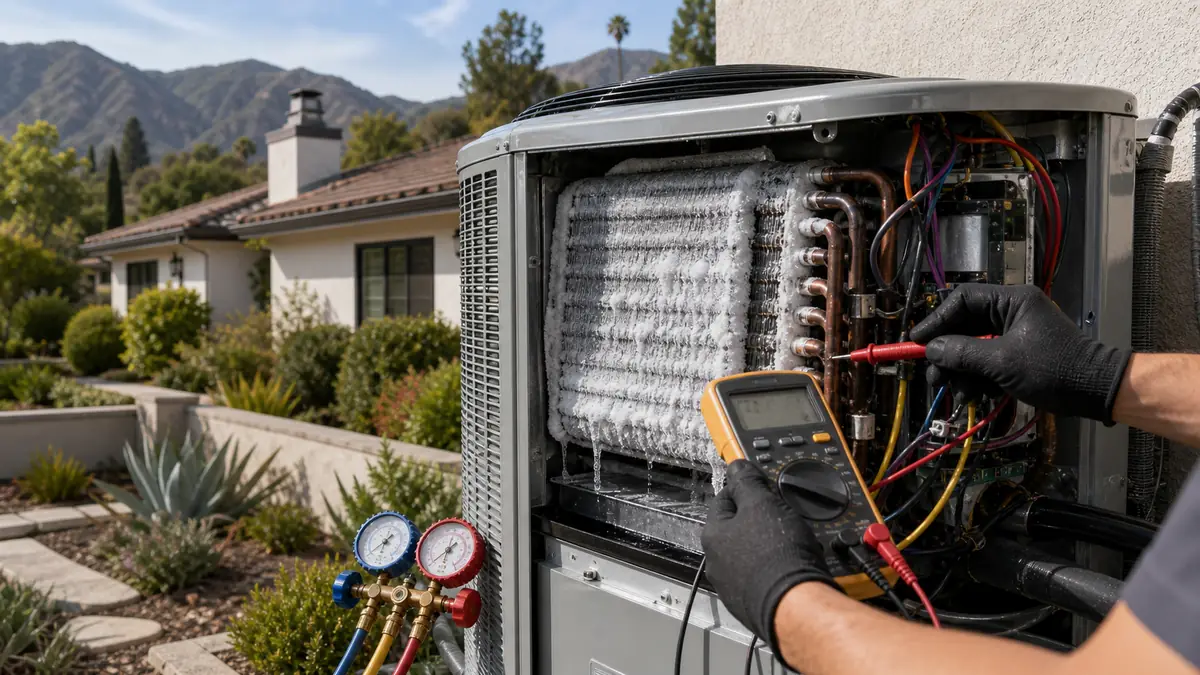

Quick answer: A frozen Trane coil in Historic Highlands, the northeast Pasadena bungalow district (91104), is usually undersized 1910s-1920s ductwork starving the coil of airflow, sometimes a refrigerant leak. Pasadena Trane HVAC measures superheat and static pressure before any recharge; call (213) 277-6575 or book online for same-week service.
At a glance
- Historic Highlands: a 1910s-1920s Craftsman and revival district in NE Pasadena, ZIP 91104.
- Retrofitted, undersized ducts are the leading local cause of coil freezing.
- Other causes: dirty coil/filter, weak ECM blower, refrigerant leak.
- Do not run a frozen system - it can slug the Climatuff compressor.
- Fix lanes: airflow $150-$900; duct sealing/resize $800-$6,000; refrigerant leak $225-$1,500.
- Hours: Open 6:30am-8pm weekdays, 8am-5pm weekends. Independent - not a Trane dealer.
Why this neighborhood, why frozen coils?
Historic Highlands sits just east of Bungalow Heaven in northeast Pasadena, full of 1910s and 1920s Craftsman and period-revival homes. Like its neighbors, the housing predates central air, so the ducts were added decades later and squeezed into tight wall and attic space. The result is a recurring pattern we see across 91104: a modern Trane coil starved by one small return and narrow trunks, icing over on the hottest afternoons exactly when you need cooling most.
Airflow or refrigerant - how do we tell here?
| Cause | Telltale | Fix lane |
|---|---|---|
| Undersized retrofit ducts | High static pressure, repeat freeze | $800 - $6,000 |
| Dirty coil / filter | Visible buildup, low vent airflow | $150 - $600 |
| Weak ECM blower | Low CFM, motor fault | $450 - $2,300 |
| Refrigerant leak | High superheat, oil at joints | $225 - $1,500 |
We measure superheat and total external static pressure before touching refrigerant. In Historic Highlands the airflow side wins most of the time, which is why our fix often runs through duct repair and sealing rather than a recharge.
What should you do before we get there?
- Switch cooling off and the fan on to thaw the ice safely.
- Replace a dirty filter; open any blocked returns and supply registers.
- If it freezes again, stop running it and book a diagnostic - the cause is mechanical.
For the general version of this problem, see frozen evaporator coil and weak airflow from vents.
What a Historic Highlands duct retrofit usually involves
When the freeze traces to airflow - which it does most of the time here - the durable fix is in the ductwork, not the condenser. On a typical 91104 bungalow that means enlarging the single undersized return or adding a second one, replacing crushed or kinked flex in the low attic, sealing the plenum and trunk joints that leak conditioned air into the attic, and re-balancing the registers so the far bedrooms get their share. We re-measure total external static pressure afterward to confirm it dropped toward the air handler's rated 0.5 inches of water column, then verify the work to HERS where Title-24 requires it on a duct alteration. The condenser the prior owner blamed is usually fine.
Climate and access notes for 91104
Historic Highlands sits at the foot of the San Gabriel range in Climate Zone 9, where afternoon heat soaks against the foothills and pushes 25 to 40 days a year past 90 F. That is precisely the window when a starved coil ices - the load is highest exactly when airflow is weakest. Access here favors compact work: many homes have shallow attics, original plaster walls, and street frontage subject to the neighborhood's historic character, so we route line sets and place outdoor units to stay off the streetscape. Nearby Bungalow Heaven and the wider Madison Heights district share the same pre-war duct constraints, so the diagnosis and fix carry across them.
Common questions about frozen coils in Historic Highlands
Why do Historic Highlands bungalows freeze their coils so often?
The neighborhood's 1910s-1920s Craftsman and revival homes were built before central air, so their ducts were retrofitted small. One undersized return starves the coil of airflow, the coil drops below freezing, and it ices. Sealing and resizing those ducts is the durable fix, not just adding refrigerant.
Is a frozen coil an emergency in Historic Highlands?
It is urgent but not a midnight emergency. Turn cooling off and the fan on to thaw it, and stop running a frozen system so you do not slug the compressor. Then book a same-week diagnostic - if it refroze after thawing, the cause is mechanical and will not fix itself.
What ZIP is Historic Highlands?
Historic Highlands lies in northeast Pasadena, largely ZIP 91104, between Bungalow Heaven and the foothills. We cover it with the rest of Pasadena, 91101 through 91107.
Will sealing my Historic Highlands ducts really stop the freezing?
In most 91104 homes, yes. When high static pressure from undersized retrofit ducts is the root cause, sealing leaks and enlarging the return or a trunk restores the airflow the coil needs to stay above 32 F. We confirm it by re-measuring static pressure and superheat after the work, and the fix is verified to HERS where Title-24 requires it.
Can a Historic Highlands attic coil freeze from a dirty filter alone?
Yes. Many bungalows here have a single small filter slot, and a loaded or over-rated filter chokes airflow enough to ice the coil on a hot afternoon. It is the cheapest cause to rule out: replace the filter with a clean one of the right size and rating, run the fan to thaw, and see if it recurs before assuming a refrigerant problem.
