Weak Airflow From Vents on a Trane in Pasadena
Fixes desk - updated 2026-06-13
Quick answer: Weak vent airflow on a Trane in Pasadena ranges from a dirty coil or filter to a failing ECM blower or leaky, undersized 1920s ducts. Pasadena Trane HVAC measures static pressure and CFM across Garfield Heights (91104) and Linda Vista to find the choke point; call (213) 277-6575 or book online.
At a glance
- Weak airflow is usually a restriction: dirty coil/filter, failing blower, or duct problem.
- Uneven (some rooms weak) points to ducts; weak everywhere points to the blower or coil.
- Trane variable-speed air handlers use an ECM blower; module/motor faults cut CFM.
- Fix lanes: filter/coil cleaning $150-$600; ECM blower $450-$2,300; duct sealing/resize $800-$6,000.
- We measure total external static pressure, not just feel the vents.
- Service ZIPs 91101-91107. Hours: Open 6:30am-8pm weekdays, 8am-5pm weekends.
- Independent - not a Trane dealer.
What is actually choking your airflow?
Air moves from the blower, across the coil, through the ducts, and out the registers. A restriction anywhere on that path shows up as weak airflow, so we measure total external static pressure to locate it rather than guessing. High static across the coil points to a dirty coil or filter; high static across the ducts points to undersized or leaky runs; low airflow with normal static points to the blower itself.
| Pattern | Likely cause | Fix lane |
|---|---|---|
| Weak at every register | Dirty coil/filter or failing ECM blower | $150 - $2,300 |
| Strong front, weak back | Undersized or leaky duct runs | $800 - $6,000 |
| One vent dead | Disconnected boot or crushed flex | $200 - $900 |
| Whistling, dust | Filter bypass or leaky plenum | $200 - $700 |
How does the ECM blower fit in?
Trane variable-speed air handlers and furnaces use an electronically commutated (ECM) blower that targets a set airflow. When the ECM module or motor degrades, it cannot hit that target, and you get weak airflow even though the furnace control LED may read a normal call. We test the ECM directly with the motor's diagnostics rather than trusting the board's status light - a misdiagnosis here is an expensive callback.
Why does Pasadena's old ductwork drive most of these calls?
The pre-war housing core is the common thread. Homes in Bungalow Heaven, Historic Highlands, and Madison Heights were built before central air, so ducts were squeezed in later - often one undersized return and narrow trunks that cannot carry a modern system's air. That is why weak airflow, frozen coils, and short cycling so often share a root cause. The durable fix is duct repair and sealing, tested to HERS.
How we diagnose weak airflow, step by step
We treat the duct system like a circuit and find the resistance, rather than swapping parts. The walkthrough on a Pasadena home:

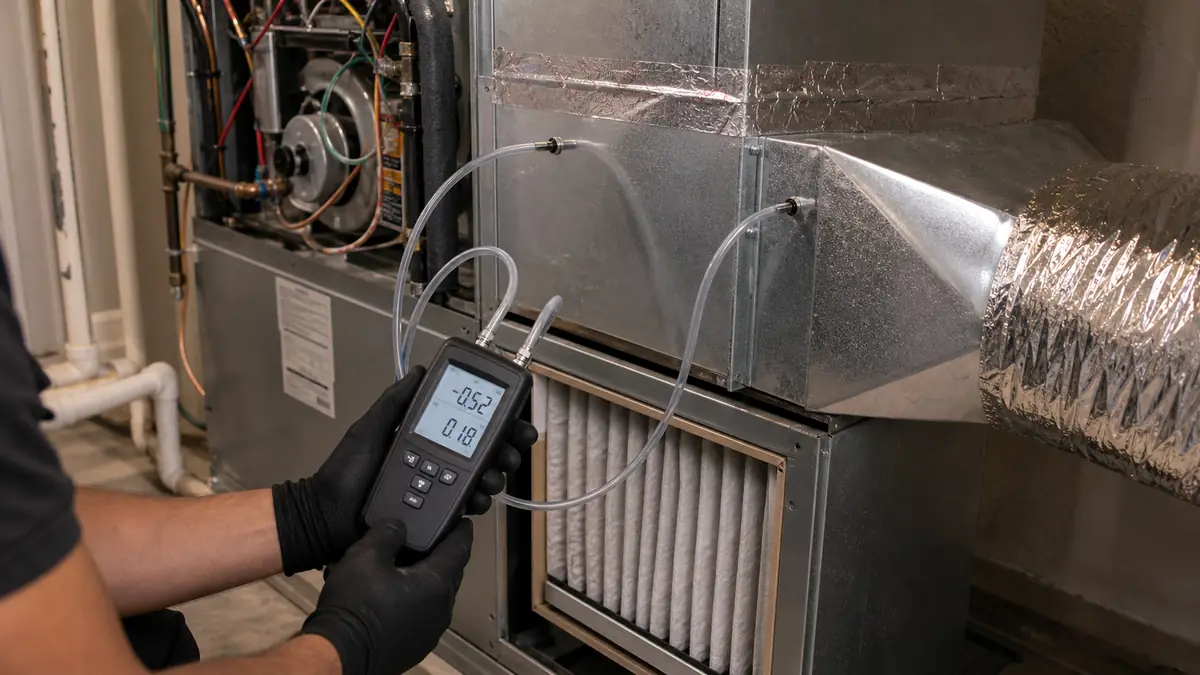

- Measure total external static pressure with a manometer across the air handler. A reading well above the rated 0.5 inches water column confirms a restriction and tells us roughly how severe.
- Split the reading - probe before and after the coil and filter. High drop across the filter or coil is a cleaning job; high drop across the supply or return ducts is a duct job.
- Traverse the registers with an anemometer to map which rooms are starved, then trace those runs into the attic or crawlspace for crushed flex, disconnected boots, or open seams.
- Test the ECM blower directly through its diagnostics. If static is normal but CFM is low, the motor or module is failing even when the furnace LED reads a normal call.
- Smoke-check or pressure-test the plenum and returns for leakage pulling hot attic air into the system.
What does it cost to fix weak airflow in Pasadena?
Approximate 2026 SoCal ranges, cheapest cause first; the diagnostic runs about $79-$200 (near $139) and is credited toward an approved repair:
- Filter and coil cleaning / airflow correction: $150-$600.
- Reconnect a dropped boot or replace crushed flex: $200-$900.
- Seal leaky plenum and returns: $200-$700.
- ECM blower module or motor: $450-$2,300; the variable-speed module sits at the high end.
- Resize or replace undersized duct runs (HERS-tested): $800-$6,000 depending on how much of the system is rebuilt.
Safe homeowner checks before you call
Replace a loaded filter with a clean one of the correct size and a rating your system can handle, open and unblock every supply and return register, and look for an obviously crushed or disconnected flex duct in an accessible attic. Those three steps clear a surprising share of "weak airflow" calls. Stop there - opening the blower compartment, testing the ECM, or working inside the plenum is a pro job, and a running blower with a slipped wheel can damage itself further.
Common questions about weak airflow in Pasadena
Why is the airflow strong in front rooms but weak in back bedrooms?
That uneven pattern points to duct problems: long undersized runs, a disconnected boot, or leakage dumping air into the attic before it reaches the far rooms. It is the most common airflow complaint in older Pasadena homes, and it is a duct fix, not an equipment fix.
Can a bad blower motor cause weak airflow everywhere?
Yes. If every register is weak, suspect the blower. A failing ECM module or motor in the Trane air handler or furnace cannot move its rated CFM, and a unit that calls for heat or cool but barely blows often has an ECM fault. We test the motor directly since the furnace LED may still read normal.
Will a bigger Trane fix my weak airflow?
Almost never, and often it makes things worse. Weak airflow is usually a duct or blower restriction; a bigger condenser pushes more load through the same choke point and freezes the coil. We fix the airflow path first, then size the equipment to it.
What static pressure is too high on a Trane system?
Most residential Trane air handlers and furnaces are rated for about 0.5 inches of water column total external static pressure. We routinely measure 0.8 to 1.2 inches on older Pasadena homes with undersized 1920s ducts - that overload chokes airflow, overheats the furnace high-limit, and shortens ECM blower life. The reading tells us whether to clean, reseal, or resize.
Does a high-MERV filter cut my airflow?
It can. A dense 1-inch MERV 13 filter in a system designed for a MERV 8 adds static pressure and starves the coil, especially on the small filter slots common in Pasadena bungalows. We either step the filter rating down or add filter area with a larger return so you keep filtration without choking the blower.
