Air Duct Repair and Sealing in Pasadena
Duct desk - updated 2026-06-13
Quick answer: Pasadena Trane HVAC repairs and seals air ducts across Pasadena ZIPs 91101 through 91107 for about $200 to $6,000, fixing the leaky, undersized 1900-1950 runs in our historic districts that starve back rooms and ice Trane coils - so call (213) 277-6575 or book online today. We measure duct leakage and total external static pressure, then HERS-test the sealed result for Title-24 compliance.
At a glance
- Duct repair, sealing, and replacement typically $1,900-$6,000 in 2026 SoCal; partial sealing far less.
- We measure duct leakage and total external static pressure, not just eyeball the runs.
- Title-24 requires HERS field verification of duct leakage on most alterations in Zone 9.
- Leaky ducts are a leading cause of weak airflow and frozen coils in older Pasadena homes.
- Common fixes: sealing boots and joints, resizing undersized trunks, replacing crushed flex.
- Service ZIPs 91101-91107. Hours: Open 6:30am-8pm weekdays, 8am-5pm weekends.
- Independent - not a Trane dealer.
Why is ductwork the real problem in old Pasadena homes?
Pasadena's housing core was built before central air existed. Craftsman bungalows from 1900-1930 and 1920s Spanish revivals had ducts retrofitted decades later, often undersized, run through unconditioned attics, and sealed with tape that has long since dried out. The symptoms show up at the registers - weak airflow, hot back rooms, a coil that freezes - but the cause is in the duct. Fixing the duct is frequently cheaper and more effective than upsizing the equipment.
| Symptom | Likely duct cause | Fix lane |
|---|---|---|
| One room never cools | Disconnected boot or crushed flex run | $200 - $900 |
| High bills, weak airflow everywhere | System-wide leakage to the attic | $800 - $3,100 (seal + HERS) |
| Coil freezes, high static pressure | Undersized return or trunk | $1,900 - $6,000 (resize) |
| Whistling, dust at registers | Leaky plenum or filter bypass | $200 - $700 |
| Musty smell, sweating ducts in summer | Uninsulated attic runs, condensation | $400 - $2,500 (re-insulate) |
| Furnace trips 4-flash high-limit | Static pressure too high for the blower | $800 - $6,000 (reduce restriction) |
How does a duct diagnosis and seal actually go?
We do not seal blind. The job starts with measurement, because the registers lie about where the air is going.
- Measure total external static pressure across the air handler with a manometer - high static is the fingerprint of undersized or restricted ducts choking a Trane coil.
- Run a duct-leakage test (duct blaster) to put a number on how much conditioned air is escaping to the attic or crawlspace before it reaches a room.
- Map the layout and inspect by hand: disconnected boots, crushed flex, dried-out cloth tape from a decades-old retrofit, and uninsulated runs baking in a 130 F attic.

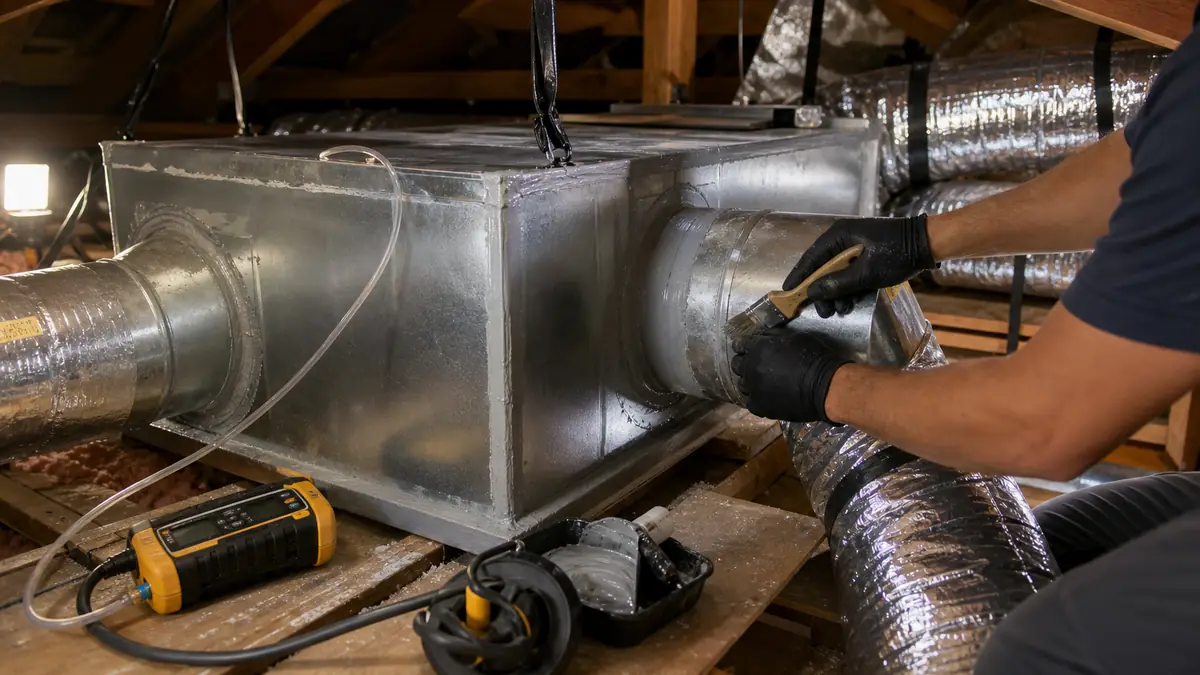

- Seal joints and boots with mastic (not tape), reconnect or replace failed runs, and resize an undersized return or trunk where static demands it.
- Re-test leakage and static, then coordinate the third-party HERS rater so the City of Pasadena permit closes on verified numbers.
What kind of ducts are in your Pasadena home?
The era of the house tells us what we will find behind the registers, and each type fails differently.
| Home era / type | Typical duct | Common failure and fix |
|---|---|---|
| 1900-1930 Craftsman (Bungalow Heaven) | Retrofit metal trunk + flex branches | Undersized returns, dried tape; reseal and resize |
| 1920s Spanish / Mediterranean revival | Attic-run flex into plaster ceilings | Crushed flex, leakage to attic; replace runs, re-insulate |
| 1940s-1950s mid-century ranch (Linda Vista) | Sheet-metal trunk in crawlspace | Disconnected boots, rusted joints; mastic-seal and reconnect |
| Newer foothill builds (Hastings Ranch) | Insulated flex, better sizing | Sealing at boots and plenum; usually lighter work |
The pattern is consistent: the older the stock, the more the duct - not the equipment - is the real bottleneck. That is why we test before we ever recommend a bigger condenser.
How does duct leakage hurt a new Trane system?
A new Trane XR or XV condenser is rated at a specific airflow and static pressure. Run it on leaky, undersized ducts and the evaporator loses airflow, the coil drops below freezing, and you get the frozen-coil and weak-airflow complaints regardless of how good the equipment is. That is why we will not install a high-efficiency system over bad ducts without flagging it - you would be paying for SEER2 ratings the duct can never deliver.
What does HERS verification add?
For permitted duct work in Pasadena's Climate Zone 9, Title-24 requires a certified HERS rater to measure duct leakage after sealing. It protects you: it proves the ducts actually hold the air you paid to seal in. We do the sealing, document it, and coordinate the third-party rater so the City of Pasadena permit closes cleanly. The SEER2 and rebates guide explains where HERS fits the broader code picture.
What does duct work cost in Pasadena, and why?
Duct work ranges from a $200 boot reconnection to a $6,000 full replacement, and the spread depends on how much of the system is failing and whether a permit pulls in HERS verification. The lanes break down like this in 2026 SoCal:
- Single repair - reconnect a boot, replace one crushed flex run: $200 to $900.
- System-wide sealing - mastic the joints and plenum, then HERS-test: $800 to $3,100.
- Resize a return or trunk - the fix when static pressure is choking the coil: $1,900 to $6,000.
- Re-insulate attic runs - stop summer sweating and heat gain: $400 to $2,500.
- Full duct replacement - bad enough that piecemeal repair is throwing money away: toward the top of the range and higher on a large home.
The cost driver in Pasadena is access. A crawlspace under a 1920s Craftsman or a low attic over a Spanish revival adds labor that an open garage run does not. We give you the duct-leakage and static numbers first, so you can see whether sealing solves it or a resize is the honest call.
Diagnostic case scenario (illustrative)
This composite example shows how a duct call typically resolves; it is illustrative, not a specific customer. A Bungalow Heaven owner calls because the two back bedrooms never cool while the living room is fine, and a previous company quoted a larger condenser. We measure total external static pressure at the air handler and read a value well above the blower's design point - the classic sign of a restriction, not an undersized AC. The duct-leakage test shows roughly a quarter of the conditioned air escaping into the attic through dried-out cloth tape at the trunk joints and a flex run crushed where it crosses a ceiling joist. The fix is mastic-sealing the joints, reconnecting and replacing the crushed run, and re-insulating the attic branches - not a bigger unit. A re-test confirms the leakage dropped to single digits and the static fell back into range, the back rooms cool, and the HERS rater verifies the numbers for the permit. The existing Trane condenser was never the problem.
Common questions about duct repair in Pasadena
Why are my back bedrooms always hotter in my Pasadena bungalow?
Almost always a duct problem: long undersized runs, disconnected boots in the crawlspace, or leakage that dumps cooled air into the attic before it reaches the room. We map the duct layout, measure static pressure, and seal or resize the runs that starve the far rooms.
Does duct sealing in Pasadena require HERS verification?
Under Title-24, most duct alterations and replacements in Climate Zone 9 trigger HERS field verification of duct leakage. A certified third-party rater tests the sealed system. We perform the sealing and schedule the HERS test so the work passes the City of Pasadena permit.
Can you reuse my old ductwork with a new Trane system?
Sometimes, if it is the right size and sealable. But a new high-efficiency Trane coil moves air at a designed static pressure, and 1920s ducts often cannot deliver it. We test first; reusing bad ducts is the fastest way to ice a coil and waste a good condenser.
How much air am I losing to leaky ducts?
In older Pasadena homes, leakage of 20 to 30 percent of the conditioned air is common - much of it dumped into a hot attic before it reaches a room. A duct-leakage test puts a real number on it. Sealing that down to single digits is often the cheapest comfort and efficiency gain available, ahead of any equipment upgrade.
Is duct sealing better than buying a bigger AC?
Usually, yes. Upsizing the condenser to overcome leaky, undersized ducts just spends more on equipment that still cannot move air through the restriction - and it can ice the coil. Fixing the duct lets a correctly sized Trane system finally deliver its rated airflow, which is why we measure static pressure before recommending any change.
